Welding Robot Systems
Choose the Right Welding Robot System for Your Project
| Image | Welding Robot System | Robot Model | Source | Welding Torch | Total Power Consumption | Working Area | Welding Speed | Application |
|---|---|---|---|---|---|---|---|---|
|

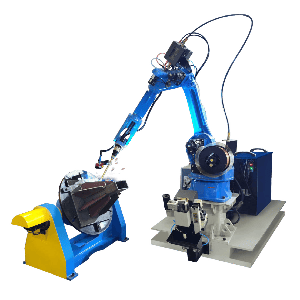

6-Axis System on a Fixed Base | YASKAWA AR1440 / AR2010 / Siasun SR12A-12/1.46 / SR25A-12/2.01 | Aotai / Megmeet | TRM (water cooling, extended version) | 5 + 31 kVA (robot + source) | 2×1.2×0.4 m | 0.3–0.5 m/min (depending on technology and modes) | Welding of gussets, ribs, brackets, supports, and small structures |
|

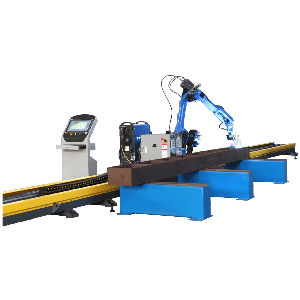

Linear 7-Axis Intelligent Welding Station | Yaskawa AR2010 / Siasun SR20A-20/2.01 | Aotai / Megmeet | TRM (water cooling, extended version) | 7 + 31 kVA (robot + source) | 8×0.9×0.4 m (rails 6 - 29 m) | 0.3 - 0.5 m/min (depending on technology and models) | Welding of metal structures |
|

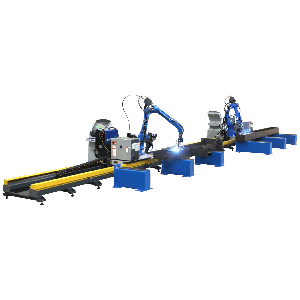

Linear 7-Axis Intelligent Welding Station With 2 Robots | Yaskawa AR2010 / Siasun SR20A-20/2.01 | Aotai / Megmeet | TRM (water cooling, extended version) | 2x14 + 2x31 kVA (robots + sources) | 16×0.9×0.4 m | 0.3 - 0.5 m/min (depending on technology and models) | H-beam webs and flanges, column base plates, girder plates, gussets, ribs, etc. |
|

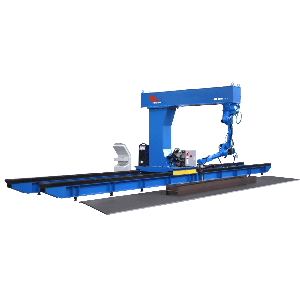

Cantilever Robotic Intelligent Welding Complex (7/8 Axis) | Yaskawa AR2010 / Siasun SR20A-20/2.01 | Aotai / Megmeet | TRM (water cooling, extended version) |
10 + 31 kVA (7 axis) 13 + 31 kVA (8 axis) |
10×1,3×0,4 m (7 axis) 12×1,3×0,4 m (8 axis) |
0.3 - 0.5 m/min (depending on technology and models) | H-beam webs and flanges, stiffeners, reinforcing plates, column base plates, girders (horizontal load-bearing beams), and other structural construction elements |
|

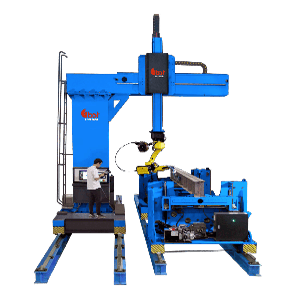

Cantilever Robotic Intelligent Welding Complex (9 Axis) | Yaskawa AR1440 / Siasun SR10A-14/1.44 | Aotai / Megmeet | TRM (water cooling, extended version) | 15 + 31 kVA (robot + source) | 18×1.5×1.2 m | 0.3 - 0.5 m/min (depending on technology and models) | H-beams, reinforcing ribs, transverse plates, column base plates, girder plates, and other construction parts |
|

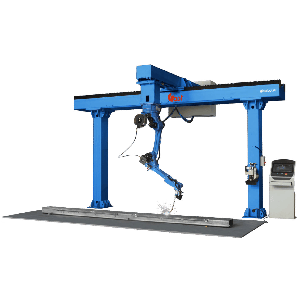

Portal Intelligent Welding Station With 1 or 2 Robots | YASKAWA AR1440 / AR2010 / Siasun SR10–1440 / SR20–2010 (1 or 2) | Aotai / Megmeet | TRM (water cooling, extended version) |
10 + 31 kVA (1 robot) 18 + 62 kVA (2 robots) |
4×0.8×0.4 m (1 robot) 16×4×0.4 m (2 robots) |
0.3 - 0.5 m/min (depending on technology and models) | H-beam reinforcing ribs, transverse ribs, column base plates, girder base plates, gussets, and other metal structure elements. Also suitable for serial welding of long parts and welding of large-sized metal structures. |
For more details on welding robot systems, visit giperlaser.com or giperbot.ru or contact us.
