Laser Power Sources

Power Sources

Raycus, IPG, Maxphotonics, Reci

Choose the Right Laser Power Source for Your Project

Model	Power	Fiber Connector	Beam Quality	Input Power	Cooling	Weight
RAYCUS RFL-C020H-CE	1 500 W	IQB	<1.8 m2	220 V AC	Water cooling	3±1 kg

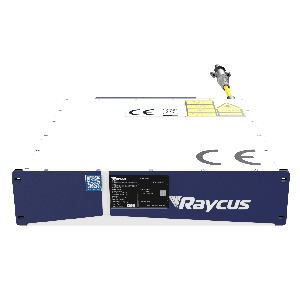

RAYCUS RFL-C025H-CE	2 000 W	IQB	<1.8 m2	220 V AC	Water cooling	3±1 kg

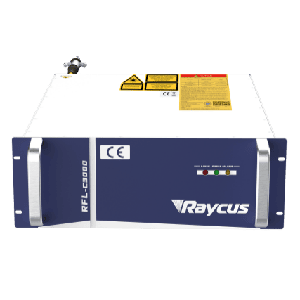

RAYCUS RFL-C3000S-CE	3 000 W	IQB	1.5 - 2 BBP	380±10% V AC, 3-ph	Water cooling	<55 kg

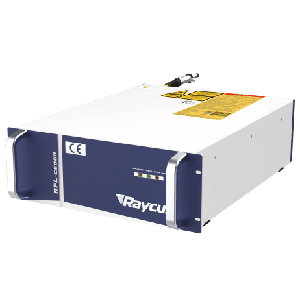

RAYCUS RFL-C6000S-CE	6 000 W	QBH	2.7 - 3.1 BBP	380±10% V AC, 3-ph	Water cooling	80 kg

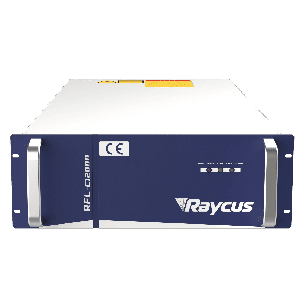

RAYCUS RFL-C12000S-CE	12 000 W	QD	3 - 4 BBP	380±10% V AC, 3-ph	Water cooling	205 kg

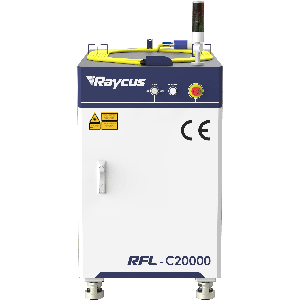

RAYCUS RFL-C20000M-CE	20 000 W	QP	3.5 - 4.3 BBP	323-436 V AC, 3-ph	Water cooling	700 kg

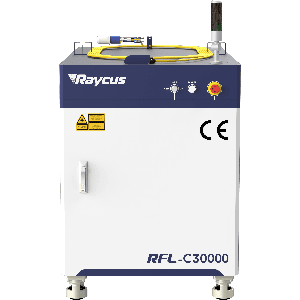

RAYCUS RFL-C30000M-CE	30 000 W	QP	4.3 BBP	323-436 V AC, 3-ph	Water cooling	1200 kg

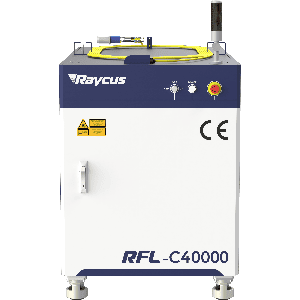

RAYCUS RFL-C40000M-CE	40 000 W	QP	4.3 BBP	323-436 V AC, 3-ph	Water cooling	1100 kg

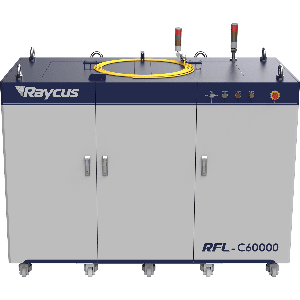

RAYCUS RFL-C60000M-CE	60 000 W	HQP	6.5 BBP	323-436 V AC, 3-ph	Water cooling	1650 kg

For more details on Raycus laser power sources, please contact us.

Tags:

Raycus 1500 W, Raycus 2000 W, Raycus 3000 W, Raycus 6000 W, Raycus 12000 W, Raycus 20000 W, Raycus 30000 W, Raycus 40000 W, Raycus 60000 W, Raycus 1.5 kW, Raycus 2 kW, Raycus 3 kW, Raycus 6 kW, Raycus 12 kW, Raycus 20 kW, Raycus 30 kW, Raycus 40 kW, Raycus 60 kW.

Model	Power	Fiber Connector	Beam Parameter Product (Process Fiber)	Input Power	Cooling	Weight

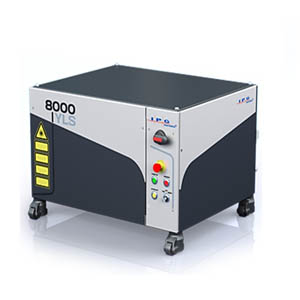

IPG YLS 8000	8 000 W	HLC (QBH-type) / LCA (QD-style)	3.5 mm×mrad	400-480 V AC, 3-ph	Water cooling	-
IPG YLS 10000	10 000 W	HLC (QBH-type) / LCA (QD-style)	6.5 mm×mrad6	400-480 V AC, 3-ph	Water cooling	-
IPG YLS 20000	20 000 W	HLC (QBH-type) / LCA (QD-style)	12 mm×mrad	400-480 V AC, 3-ph	Water cooling	-

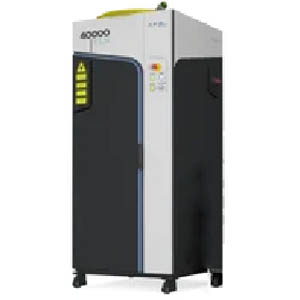

IPG YLS 40000	40 000 W	HLC (QBH-type) / LCA (QD-style)	13 mm×mrad	400-480 V AC, 3-ph	Water cooling	-
IPG YLS 60000	60 000 W	HLC (QBH-type) / LCA (QD-style)	17 mm×mrad	400-480 V AC, 3-ph	Water cooling	-
IPG YLS 120000	120 000 W	HLC (QBH-type) / LCA (QD-style)	48 mm×mrad	400-480 V AC, 3-ph	Water cooling	-

For more details on IPG laser power sources, please contact us.

Series	Power Range	Power Redundancy	Safety Systems	Applications

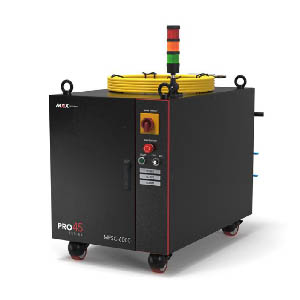

Maxphotonics Pro45 Series	3-6 kW, 10 / 12 / 15 / 20 / 30 kW	20%+	PL-d / PL-e (ISO 13849-1), dual-channel E-stop and interlocks	High-duty-cycle cutting and welding where energy efficiency impacts ROI

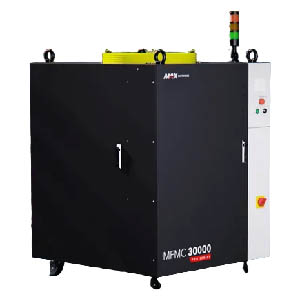

Maxphotonics Pro Series	MFSC 2-6 kW, MFMC 12-20 kW, MFMC 30 kW	10%	PL-d (ISO 13849-1) with dual-channel E-stop and interlocks	Thick-section cutting, automotive/aerospace welding

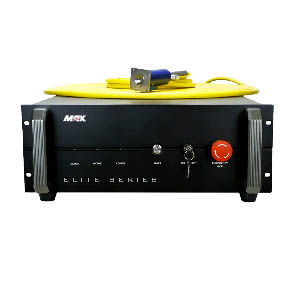

Maxphotonics Elite Series	MFSC 2–6 kW, MFSC 12 kW, MFMC 20 / 30 / 40 / 50 / 60 / 80 / 85 kW	5%+	PL-d (ISO 13849-1), dual-channel E-stop and interlocks	Multi-process workcells, general fabrication, beam tuning flexibility

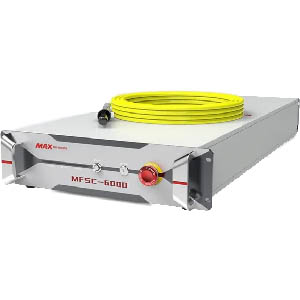

Maxphotonics X/M Series	X Series: 1.5-6 kW, M Series: 12-160 kW	-	Single-channel interlock + E-stop (CE compliant)	High-volume sheet metal cutting, thick-plate machining, general manufacturing

For more details on Maxphotonics laser power sources, please contact us.

Model	Power	Fiber Connector	Beam Quality	Input Power	Cooling	Weight
RECI FC 1500	1 500 W	QBH	M2 = 1.3 - 7	220 V AC	Water cooling	40 kg

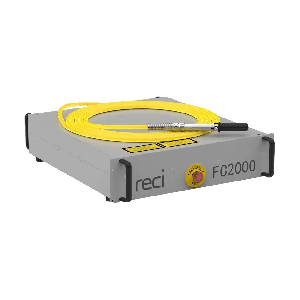

RECI FC 2000	2 000 W	QBH	M2 = 1.3 - 7	220 V AC	Water cooling	40 kg

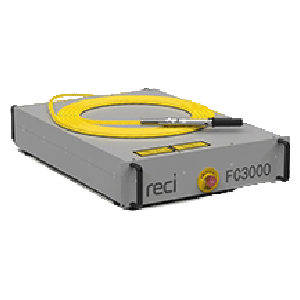

RECI FC 3000	3 000 W	QBH	M2 = 1.3 - 7	380 V AC	Water cooling	60 kg

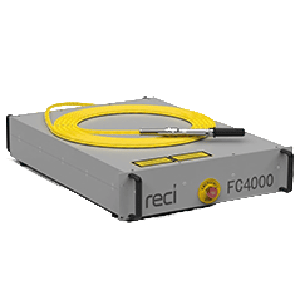

RECI FC 4000	4 000 W	QBH	M2 = 1.3 - 7	380 V AC	Water cooling	85 kg

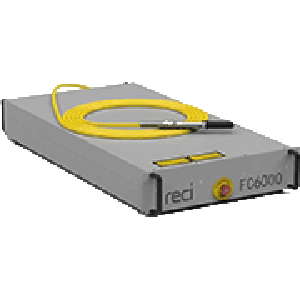

RECI FC 6000	6 000 W	QBH	M2 = 1.3 - 7	380 V AC	Water cooling	83 kg

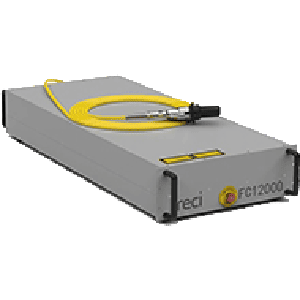

RECI FC 12000	12 000 W	Q+ / LOE	M2 = 1.3 - 7	380 V AC	Water cooling	100 kg

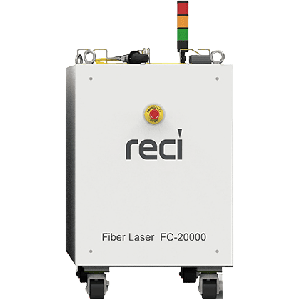

RECI FC 20000	20 000 W	QD	M2 = 1.3 - 7	380 V AC	Water cooling	900 kg

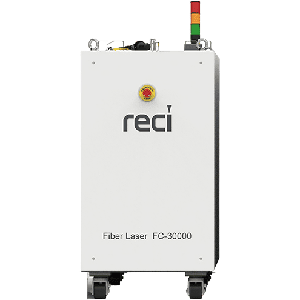

RECI FC 30000	30 000 W	Q+ / LOE	M2 = 1.3 - 7	380 V AC	Water cooling	670 kg

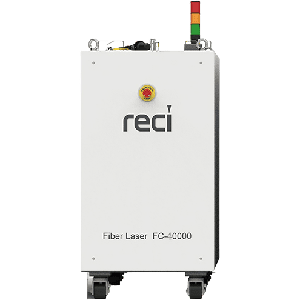

RECI FC 40000	40 000 W	Q+ / LOE	M2 = 1.3 - 7	380 V AC	Water cooling	740 kg

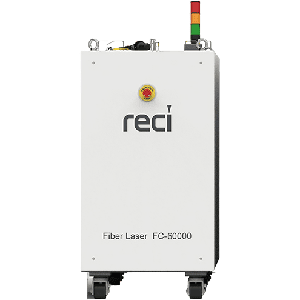

RECI FC 60000	60 000 W	Q+ / LOE	M2 = 1.3 - 7	380 V AC	Water cooling	1340 kg
