Laser Cutting Machines

Choose the Right Laser Cutting Machine for Your Project

Image	Model	Cutting Area (L×W)	Laser Source	CNC System	Laser Cutting Head	Position Accuracy (X and Y axis)	Reposition Accuracy (X and Y axis)	Machine weight
Sheet Metal Cutting
	GIPERLASER SMART (3015, 4015, 6015, 8015)	3000×1500 mm 4000×1500 mm 6000×1500 mm 8000×1500 mm	Fiber & 1 – 6 kW	FSCUT 1000	F125 mm	0.02 mm	0.03 mm	≤2500 kg

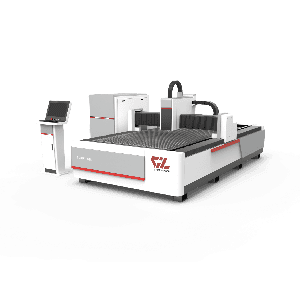

	GIPERLASER SMART E (3015)	3000×1500 mm	Fiber & 3 kW	FSCUT 1000	F125 mm	0.02 mm	0.03 mm	≤2500 kg
	GIPERLASER SMART PLUS (3015+, 4015+, 6015+, 8015+)	3050×1530 mm - 8130×1530 mm	Fiber & 1 – 6 kW	FSCUT 2000	BM111 F125 mm BM114 F150 mm BM115 F200 mm	0.02 mm	0.03 mm	≤5600 kg

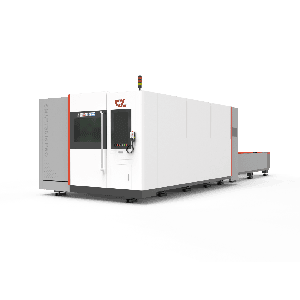

	GIPERLASER SMART PRO (3015 PRO)	3050×1530 mm	Fiber & 1 – 6 kW	FSCUT 2000	BM111 F125 mm	0.02 mm	0.03 mm	≤7000 kg
	GIPERLASER SMART PRO PLUS	6100×2550 mm	6 – 20 kW	FSCUT 5000	BM115 F200 mm Pro Cutter 2.0 F200	0.02 mm	0.03 mm	≤17000 kg

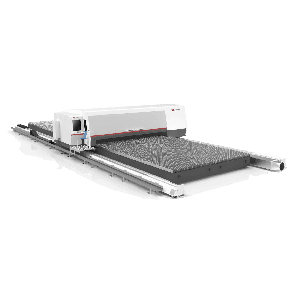

	GIPERLASER WALC P	6000×50000 mm	6 - 30 kW	FARLEY-A FARLEY-H	F200 - F300 mm	0,1 mm / 10 m	0,05 mm / 10 m	n/a

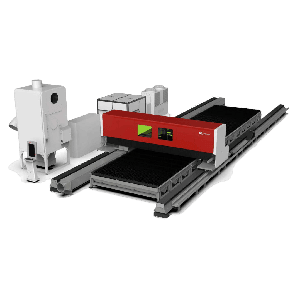

	GIPERLASER WALC F	6000×50000 mm	6 - 30 kW	FARLEY-A FARLEY-H	F200 - F300 mm	0,1 mm / 10 m	0,05 mm / 10 m	n/a

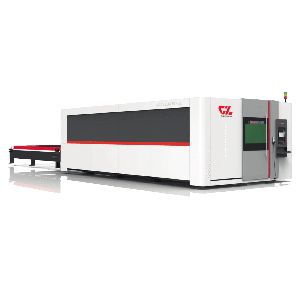

	GIPERLASER MARVEL PLUS	3100×1530 mm - 12080×2570 mm	3 - 15 kW	Metalix	n/a	0.5 mm	0.025 mm	n/a

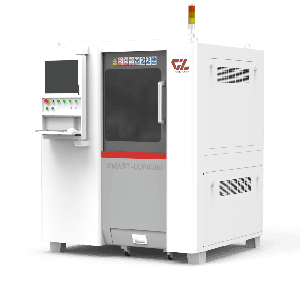

	GIPERLASER SMART LCP (4050, 6080)	compact	500 W, 1000 W, 1500 W, 2000 W, 3000 W, QCW750	FSCUT 2000	F125 mm	0.03 mm	0.03 mm	n/a

For more details on laser cutting machines, visit giperlaser.com or contact us.

Image	Model	Cutting Area (L×W)	Tube Cutting Size (L×D)	Laser Source	CNC System	Laser Cutting Head	Position Accuracy (X and Y axis)	Machine weight
Tube Cutting

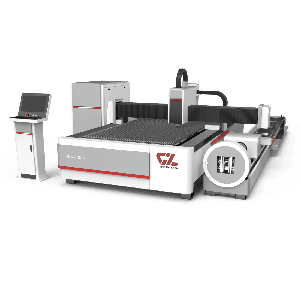

	GIPERLASER SMART T (3015, 4015, 6015, 8015)	3000×1500 mm 4000×1500 mm 6000×1500 mm 8000×1500 mm	8000×220 mm	Fiber & 1 – 6 kW	FSCUT 1000	F125 mm	0.02 mm	≤2500 kg

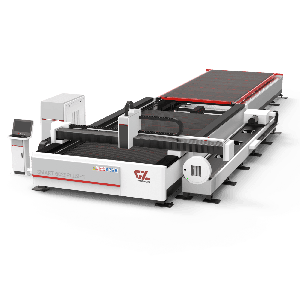

	GIPERLASER SMART PLUS T (3015)	3050×1530 mm	6030×220 mm	Fiber & 1 - 6 kW	FSCUT 3000	BM111 F125 mm	0.02 mm	≤6800 kg
	GIPERLASER SMART PRO T (3015 PRO T)	3050×1530 mm	6030×220 mm	Fiber & 1 – 6 kW	FSCUT 3000	BM111 F125 mm	0.02 mm	≤8870 kg
	GIPERLASER WALC Q (3015, 4015, 6015, 8015)	3050×1530 mm	6030×220 mm	Fiber & 6 – 30 kW	FSCUT 2000	BM111 F125 mm	0.02 mm	≤7000 kg

For more details on laser cutting machines, visit giperlaser.com or contact us.
