Fiber Laser Cutting Heads

Choose the Right Laser Cutting Head for Your Project

Image Model Power Range Fiber Interface Focal Distance Laser Wavelength Weight
2D (Flat) Laser Cutting Heads

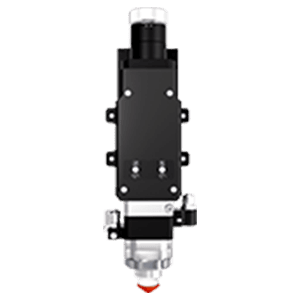

Bochu blt 3 series 300px BOCHU BLT 3 Series 4 kW QBH, EOC 150/200 mm 1030~1090 nm 4.5 kg

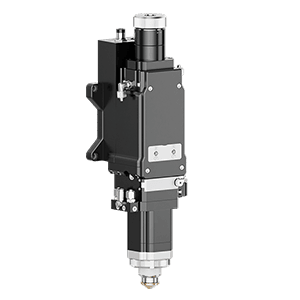

Bochu blt 4 series 300px BOCHU BLT 4 Series 8 - 60 kW QBH, EOC, Q+, QD, QBH, ADD 150/200/300 mm 1030~1090 nm 5.1 - 7.0 kg

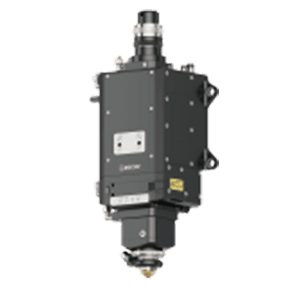

Bochu blt 6 series 300px BOCHU BLT 6 Series 15 - 40 kW Q+, QD, QBH, ADD 200/300 mm 1030~1090 nm 9 - 9.8 kg

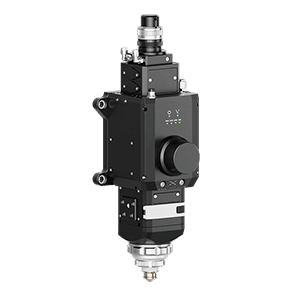

Bochu blt 8 series 300px BOCHU BLT 8 Series 15 - 20 kW Q+, QD, QBH, ADD 200 mm 1030~1090 nm 12 kg

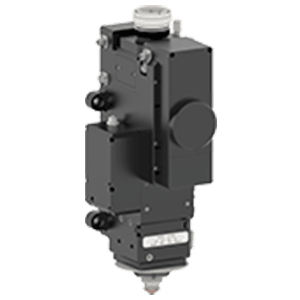

Bochu blt 9 series 300px BOCHU BLT 9 Series 30 - 60 kW Q+, ADD 200/400 mm 1030~1090 nm 14.2 - 15.0 kg
3D Laser Cutting Heads
Bochu blt 3 series 300px BOCHU BLT 4P Series 15 - 40 kW Q+, ADD, QBH, QD 250/300 mm 1030~1090 nm n/a
Bochu blt 4 series 300px BOCHU BLT 4 Series 8 - 60 kW QBH, EOC, Q+, QD, QBH, ADD 150/200/300 mm 1030~1090 nm 5.1 - 7.0 kg
Tube Laser Cutting Heads

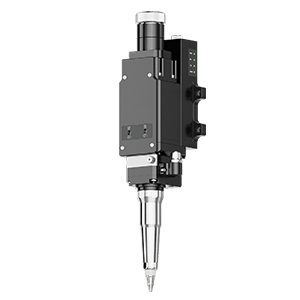

Bochu blt 3t series 300px BOCHU BLT 3T Series 4 - 20 kW QBH, EOC, Q+, QD, ADD 150/200/250 mm 1030~1090 nm 6.5 - 7.5 kg
Bochu blt 4 series 300px BOCHU BLT 4T Series 8 - 20 kW QBH, EOC, Q+, ADD, QD 200/250 mm 1030~1090 nm 5.1 - 6.5 kg

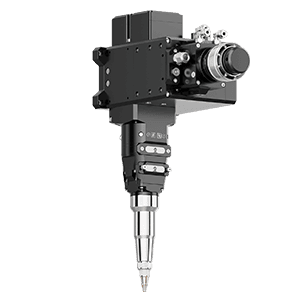

Bochu blt 5h series 300px BOCHU BLT 5H Series 4 - 20 kW QBH, EOC, Q+, ADD, QD 150/200/250 mm 1030~1090 nm 6.5 - 7.5 kg

For more details on Bochu laser cutting heads, visit bochu.ae or contact us.

Image Model Power Range Fiber Interface Focal Distance Weight
Flat Cutting

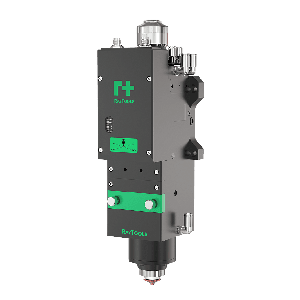

raytools bm06k 300px RAYTOOLS BM06K 6 kW QBH, QD, G5 150/200 mm 7.5 kg

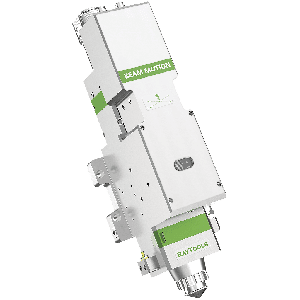

raytools bm111 300px RAYTOOLS BM111 3.3 kW QBH, QD 125/155/200 mm 5.7 kg

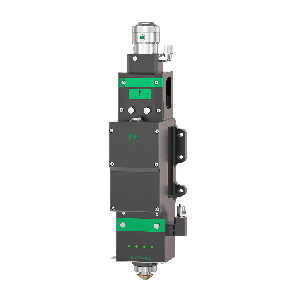

raytools bs04k 300px RAYTOOLS BS04K 4 kW QBH, QD (LLK-D), G5 150 mm 6.5 kg

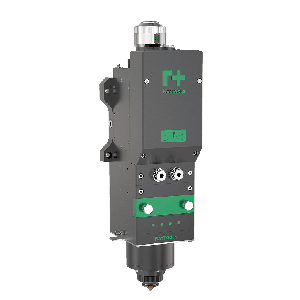

raytools bs08k 300px RAYTOOLS BS08K 8 kW QBH, QD, G5 150/200 mm 8.2 kg

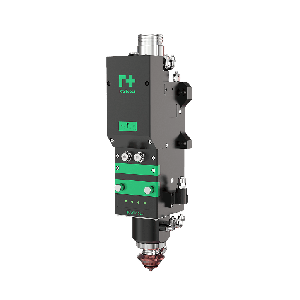

raytools bs15k 300px RAYTOOLS BS15K 15 kW QBH, QD, Q+, LOE 200 mm 8.2 kg

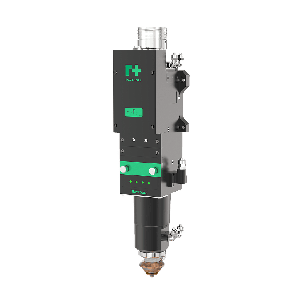

raytools bs20k 300px RAYTOOLS BS20K 20 kW QD, Q+, LOE 300 mm 8.5 kg

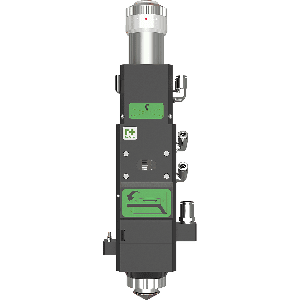

raytools bt240s 300px RAYTOOLS BT240S 3.3 kW QBH, QD 125/155/200 mm 3.5 kg
Tube Cutting

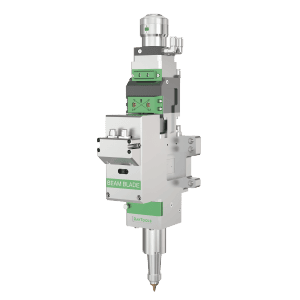

raytools bd04k 300px RAYTOOLS BD04K 4 kW QBH, QD, G5 200 mm 4.8 kg

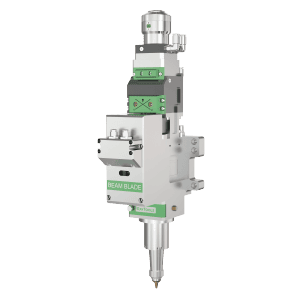

raytools bd08k 300px RAYTOOLS BD08K 8 kW QBH, QD, G5 200 mm 5 kg

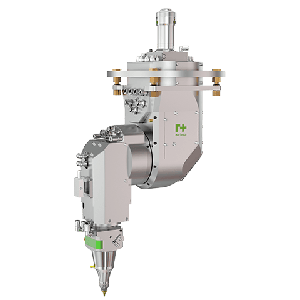

raytools gf402 300px RAYTOOLS GF402 6 kW QBH, QD, G5 150 mm 18 kg

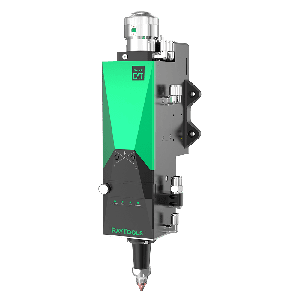

raytools bs04k cat 3d 300px RAYTOOLS BS04K CAT-3D 4 kW QBH, G5 150/200 mm 5.8 kg

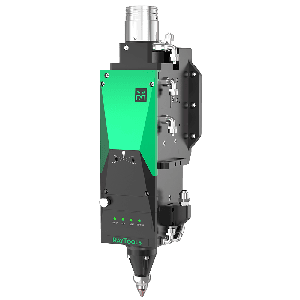

raytools bs08k cat 3d 300px RAYTOOLS BS08K CAT-3D 8 kW QBH, QD, G5 220/300 mm 8.0 kg
raytools bs15k cat 3d 300px RAYTOOLS BS15K CAT-3D 15 kW QD, Q+, LOE 220/300 mm 8.2 kg

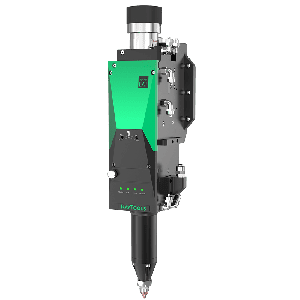

raytools bs20k cat plus 3d 300px RAYTOOLS BS20K CAT-3D 20 kW Q+, QD, LOE 220/300 mm 8.2 kg
raytools bs30k cat plus 3d 300px RAYTOOLS BS30K CAT-3D 30 kW Q+, QD, LOE 300 mm 8.2 kg

For more details on Raytools laser cutting heads, visit raytools.ae or contact us.
